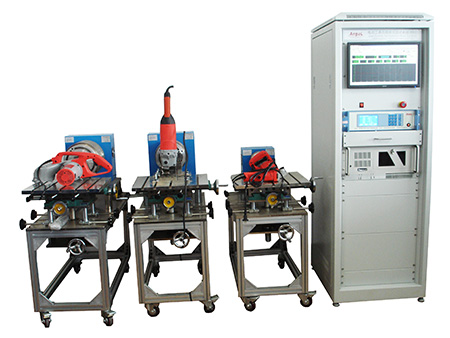

Durability Test System for Power/Garden Tools
|
|
|
System can be used for FFU TEST and LOAD LIFE TEST, which meets nearly all kinds of Durability Test criterion in different areas.Based on this general test bench and with different power/garden tools fixture and different dynamometers, we can can test the most power/garden tools such as Angle Grinder, Impact Drill, Tile Cutter, Circular Saw, DC Drill, Jig Saw, Electric Chainsaw, Hedge Trimmer, Mower, Hand Planer, Router.etc
Features:
1.User can control Power tools' Torque, Current, Powerin, Speed in the test, and each cycle can be set 10 test steps maximumly, each step can be set 0~999 second.
2. By digital PID adjustment, system can run constant load(torque, current or powerin), and once the load be set, it will be automatically stable in 2~3seconds without any outside adjusting by hand.
3. Real-time show the curve during the test, user can easily see the process of loading(current, voltage, torque via time)
4. Automatically save record during test, saving interval can be set freely.
5. Automatically test without any person to supervise, system can automatically stop and alarm by setting alarm value for current, speed or torque.
6.
Air switch is optional for cooling in the test (for special power/garden tools).
7.System can test most power/garden tools such as Hand planer, Tile cutter, Angle Grinder, Table drill, Impact drill, hand circular saw, Rechargeable drill and so on.
Customers: Crown Power Tools Manufacture Co.,Ltd, YAT Appliance Co., Ltd, Suzhou Black&Decker Manufacture Co.,Ltd, Shanghai Metabo, Shanghai BV Lab, shanghai TUV Lab.
|
|
